Ocean Reflections - Glass Laser Hologram
$50.00
Sold Out

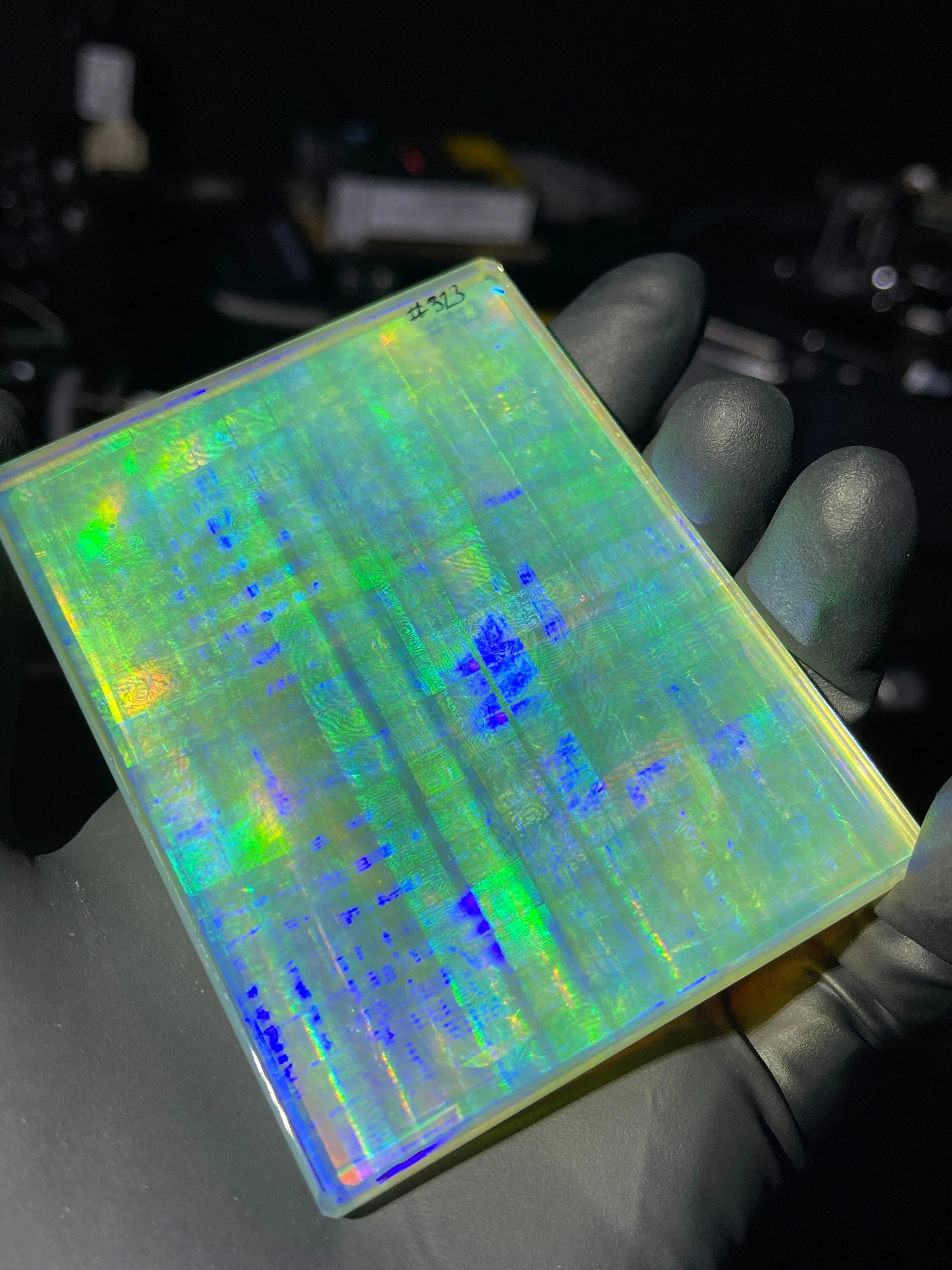

A multi-exposure reflective holographic grating, displaying a series of blue and cyan squares against a curved green background. Made from two layers of holographic image laminated to thick glass.
Holograms are very difficult to photograph and are much better in person. There is much more depth, dimension of color, and texture to the holographic layer that cannot be described.
Recorded in dichromated gelatin on Oct. 3, 2021. Produced using scientific-grade lasers: 488 nm Coherent Sapphire and 445 nm Ahura ECDL. Beams combined prior to spatial filtering and final collimation with a telescope mirror.
Emulsion layer formed via mold coating using hydrophobic and hydrophilic silane treatments on opposite sheets of glass. Dehydrated with a series of isopropanol baths prior to final development with a heat gun.
Please note that all holograms, especially DCG holograms, are vulnerable to moisture and humidity. Please store and display in a dry area.
After development and processing, the delicate holographic layer is laminated behind a thick sheet of glass. Pre-teatment of the cover glass with (3-aminopropyl)triethoxysilane improves adhesion of the resin. The edges are ground with a series of diamond lapping wheels, then polished on a buffer to a glossy shine. The result is a jewel-like faceted appearance and an excellent feel in the hand.
The number in the corner is for inventory tracking. It can be easily removed with an alcohol wipe. Holograms are best viewed when illuminated with light coming from a single point, such as a flashlight or spotlight.
For more information about how holograms are made, please visit rikalabs.net and click on the "Process" tab.
Custom work is also available. I love making holograms, and custom orders are the most rewarding. Please contact me for details.
